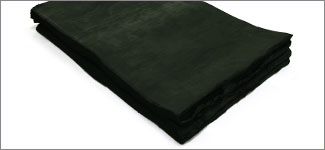

MIN 101F IS A SUPER
REFINED HIGH QUALITY RECLAIM RUBBER |
|
| |
|
Grades of Whole type reclaimed rubber |
| H.T. |
: |
Highy tensile reclaime rubber usrd in making highly quality rubber products. |
| H.R. |
: |
Highly refined reclaimed rubber widely used in Truck tyres, Thread rubber and Rubber mounded Components. |
| S.F. |
: |
Moderately refined reclaimed rubber mostly used in Cycle tyers, Rubber matts, Battery Containers and also in rubber moulded goods. |
| COARSE |
: |
Coarse reclaim rubber mainly used in Tyre flaps, Pedal rubbers, Floor / Coir matt etc. |
| BUTYLE RECLAIM RUBBER : |
Butyl reclaim is used in butyl Automobile tubes, Hoses, Tyre inner etc. |
|
|
| |
| TECHNICAL DATA |
WHOLE TYRE RECLAIMED RUBBER |
| KEY GRADES |
|
H.T. |
H.R. |
S.F. |
Coarse |
| Ash |
(%) |
7+2 |
7+2 |
7+2 |
7+2 |
| Carbon Black |
(%) |
25+2 |
25+2 |
25+2 |
25+2 |
| Acetone Extract |
(%) |
14+3 |
14+3 |
14+3 |
14+3 |
| Rubber Hydrocarbon Content |
(%) |
Min. 51 |
Min. 51 |
Min. 51 |
Min. 51 |
| Moisture |
(%) |
Max. 1 |
Max. 1 |
Max. 1 |
Max. 1 |
| Specific Gravity |
|
1.12 + 0.02 |
1.12 + 0.02 |
1.12 + 0.02 |
1.12 + 0.02 |
| Tensile Strength |
kg/cm² |
Min. 60 |
Min.50 |
Min. 45 |
Min. 35 |
| Elongation of Break |
(%) |
Min. 200 |
Min. 230 |
Min. 200 |
Min. 200 |
| Hardness |
|
55 + 5 |
55 + 5 |
55 + 5 |
55 + 5 |
| Moneey Viscosity |
@ 100° C |
25 - 55 |
25 - 55 |
25 - 55 |
25 - 55 |
| Grain Size |
|
Super Fine |
Highly refined |
Super Fine |
Medium |
|
| |
| |
PRODUCT
CODE: MIN 101F |
Product
Code |
Specification |
Physical
Appearance |
Bale |
Colour |
Black Slab |
|
| |
| |
Chemical
Composition |
Unit |
Values |
Acetone
Extract (ISO 1407) |
% |
14 + 3 |
Ash
Content (ISO 247) |
% |
7 + 2 |
Carbon
Black (ISO 1408) |
% |
25 + 2 |
Rubber
Hydrocarbon (RHC) By Difference |
% |
Min. 51 |
|
| |
| |
Physical
Properties |
Unit |
Values |
Specific
Gravity (ISO 2781) |
N/A |
1.12 + 0.02 |
Tensile
Strength (ISO 37) |
kgf/cm2 |
Min.50 |
Elongation
@ Break (ISO 37) |
% |
Min. 230 |
Mooney
Viscosity (ISO 289) |
ML (Vr) |
25 - 55 |
Hardness |
|
55 ±
5 |
|
| |
With Pallet
25kgs
per Bale x 48 Bales per pallet = 1,200kgs
per pallet (For local market.)
25kgs per Bale x 40 Bales per pallet
= 1,000kgs per pallet
(For export market: 20.000 tons per
20’ container.)
Without Pallet
25kgs per Bale x 940 Bales = 23,500kgs
per 20' container.
|
|
|
|
|
| |
